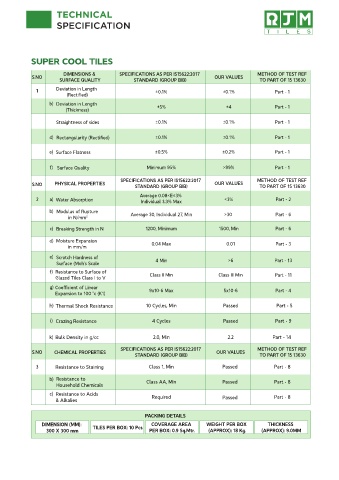

Page 15 - RJM Catalog - 2025 -FINAL

TECHNICAL
SPECIFICATION

SUPER COOL TILES
CHARACTERISTIC
DIMENSIONS & SPECIFICATIONS AS PER IS15622:2017 METHOD OF TEST REF
S.NO OUR VALUES
SURFACE QUALITY STANDARD GROUP BIB TO PART OF 15 13630
1 a) Deviation in Length ±0.1% ±0.1% Part - 1
(Recti ed)
b) Deviation in Length
(Thickness) ±5% ±4 Part - 1

c) Straightness of sides ±0.1% ±0.1% Part - 1

d) Rectangularity (Recti ed) ±0.1% ±0.1% Part - 1

e) Surface Flatness ±0.5% ±0.2% Part - 1

f) Surface Quality Minimum 95% >99% Part - 1

SPECIFICATIONS AS PER IS15622:2017 METHOD OF TEST REF
S.NO PHYSICAL PROPERTIES STANDARD GROUP BIB OUR VALUES TO PART OF 15 13630
Average 0.08<E≤3%
1 2 a) Water Absorption Individual 3.3% Max <3% Part - 2

b) Modulus of Rupture
in N/mm Average 30, Individual 27, Min >30 Part - 6

c) Breaking Strength in N 1200, Minimum 1500, Min Part - 6
d) Moisture Expansion 0.04 Max 0.01 Part - 3
in mm/m
e) Scratch Hardness of 4 Min >6 Part - 13
Surface (Moh's Scale
f) Resistance to Surface of
Glazed Tiles Class I to V Class II Min Class III Min Part - 11
g) Coe cient of Linear
Expansion to 100 °c (K1) 9x10-6 Max 5x10-6 Part - 4
h) Thermal Shock Resistance 10 Cycles, Min Passed Part - 5

i) Crazing Resistance 4 Cycles Passed Part - 9

k) Bulk Density in g/cc 2.0, Min 2.2 Part - 14

SPECIFICATIONS AS PER IS15622:2017 METHOD OF TEST REF
S.NO CHEMICAL PROPERTIES OUR VALUES
STANDARD GROUP BIB TO PART OF 15 13630
3 a) Resistance to Staining Class 1, Min Passed Part - 8
b) Resistance to Class AA, Min Passed Part - 8
Household Chemicals
c) Resistance to Acids
& Alkalies Required Passed Part - 8

PACKING DETAILS
DIMENSION (MM): TILES PER BOX: 10 Pcs COVERAGE AREA WEIGHT PER BOX THICKNESS
300 X 300 mm PER BOX: 0.9 Sq.Mtr. (APPROX): 18 Kg. (APPROX): 9.0MM
