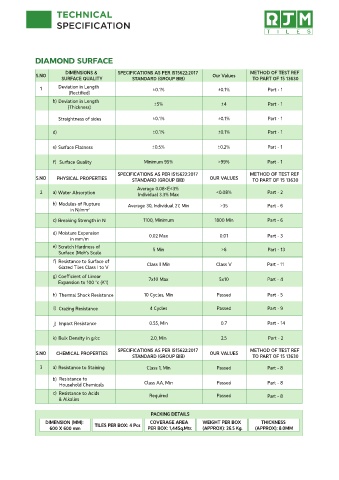

TECHNICAL
SPECIFICATION

DIAMOND SURFACE
CHARACTERISTIC
DIMENSIONS & SPECIFICATIONS AS PER IS15622:2017 METHOD OF TEST REF
S.NO Our Values
SURFACE QUALITY STANDARD GROUP BIB TO PART OF 15 13630
1 a) Deviation in Length ±0.1% ±0.1% Part - 1
(Recti ed)
b) Deviation in Length ±5% ±4 Part - 1
(Thickness)
c) Straightness of sides ±0.1% ±0.1% Part - 1

d) ±0.1% ±0.1% Part - 1

e) Surface Flatness ±0.5% ±0.2% Part - 1

f) Surface Quality Minimum 95% >99% Part - 1
Rectangularity (Recti ed)
SPECIFICATIONS AS PER IS15622:2017 METHOD OF TEST REF
S.NO PHYSICAL PROPERTIES STANDARD GROUP BIB OUR VALUES TO PART OF 15 13630
Average 0.08<E≤3%
1 2 a) Water Absorption Individual 3.3% Max <0.08% Part - 2
b) Modulus of Rupture Average 30, Individual 27, Min >35 Part - 6
in N/mm

c) Breaking Strength in N 1100, Minimum 1800 Min Part - 6
d) Moisture Expansion 0.02 Max 0.01 Part - 3
in mm/m
e) Scratch Hardness of 5 Min >6 Part - 13
Surface (Moh's Scale
f) Resistance to Surface of Class II Min Class V Part - 11
Glazed Tiles Class I to V
g) Coe cient of Linear 7x10 Max 5x10 Part - 4
Expansion to 100 °c (K1)

1 h) Thermal Shock Resistance 10 Cycles, Min Passed Part - 5

i) Crazing Resistance 4 Cycles Passed Part - 9

j) Impact Resistance 0.55, Min 0.7 Part - 14

k) Bulk Density in g/cc 2.0, Min 2.5 Part - 2

SPECIFICATIONS AS PER IS15622:2017 METHOD OF TEST REF
S.NO CHEMICAL PROPERTIES OUR VALUES
STANDARD GROUP BIB TO PART OF 15 13630
3 a) Resistance to Staining Class 1, Min Passed Part - 8
b) Resistance to
Household Chemicals Class AA, Min Passed Part - 8
c) Resistance to Acids Required Passed Part - 8
& Alkalies

PACKING DETAILS
DIMENSION (MM): COVERAGE AREA WEIGHT PER BOX THICKNESS
600 X 600 mm TILES PER BOX: 4 Pcs PER BOX: 1,44Sq.Mtr. (APPROX): 26.5 Kg. (APPROX): 8.0MM
